This document is intended to describe each of the presets parameters used to slice a model with Zim.
|

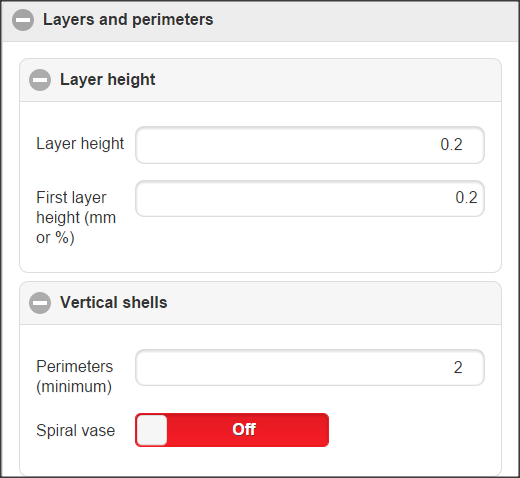

Layers and Perimeters
|
Layer Height
|
Layer Height
|
Controls the height (and the total number) of the slices or layers. Thinner layers give more accuracy but take longer to print
|
|
|
|
First layer height (mm or %)
|
Controls the height of the first layer. For building with very low layer height it may be preferable to set a higher first layer to improve adhesion and tolerance for non-perfect build plates
|
|
|
Vertical shells
|
Perimeters (minimum)
|
Sets the number of perimeters to set for each layer
|
|
|
|
Spiral vase (on/off)
|
This will raise z gradually while printing a single-walled object in order to remove any visible seam. If this option is turned on other settings will be overridden to enforce a solid perimeter, no infill, no top solid layers as well as no support material. |
|
|

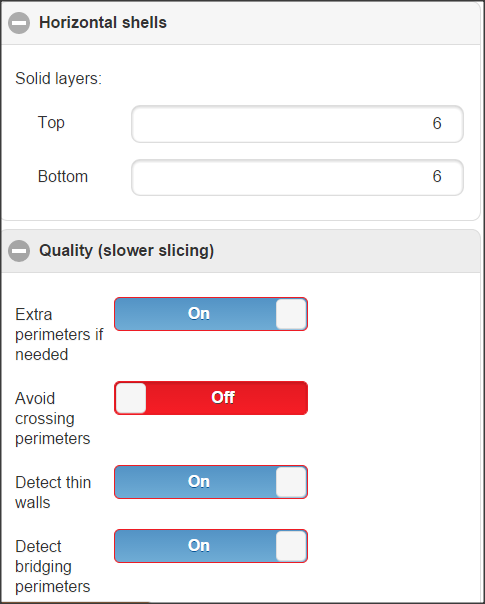

Horizontal Shells
|
Solid Layers (top, bottom)
|
Sets the number of solid layers to set on the top and bottom
|
|
|
Quality (slower slicing)
|
Extra perimeters if needed (on/off)
|
Adds extra perimeter if necessary to avoid gaps in sloping walls
|
|
|
|
Avoid crossing perimeters (on/off)
|
Optimize the travel pattern in order to avoid crossing perimeters. Mostly useful with a Bowden extruder which Is susceptible to oozing
|
|
|
|
Detect thin walls (on/off)
|
Detects parts where two extrusions don’t fit and need to be collapsed into a single trace
|
|
|
|
Detect bridging perimeters (on/off)
|
Experimental option that adjusts flow for overhangs to apply bridge speed to them and enable fan
|
|
|

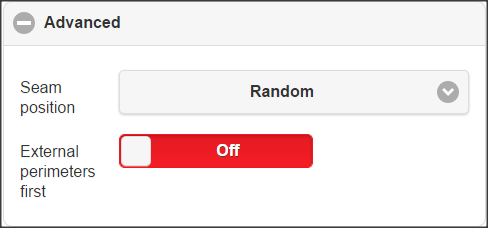

Advanced
|
Seam Position
|
Positions of perimeters starting point
|
|
|
|
External perimeters first (on/off)
|
Completes the perimeters from outermost to innermost rather than the default opposite order
|
|

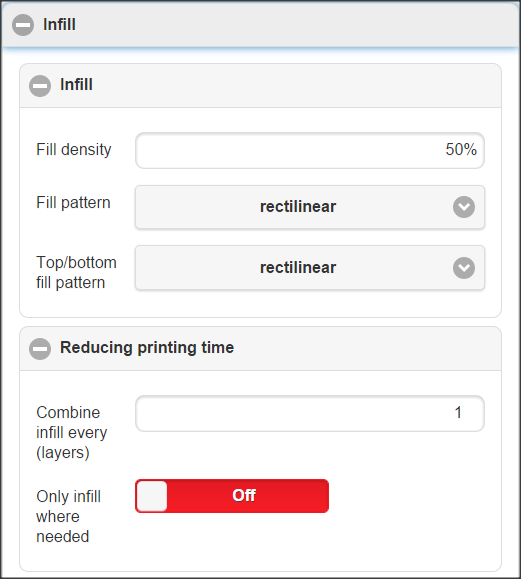

Infill
|
Infill
|
Fill density
|
The density of the internal infill
|
|
|
|
Fill pattern
|
Sets the pattern of the infill
|
|
|
|
Top/bottom fill pattern
|
Infill pattern for the top and bottom
|
|
|
Reducing Printing time
|
Combine infill every (layers)
|
Allows for faster printing while still maintaining small perimeters and thus accuracy
|
|
|
|
Only infill where needed (on/off)
|
Limits infills to areas needed for supporting ceilings
|
|
|

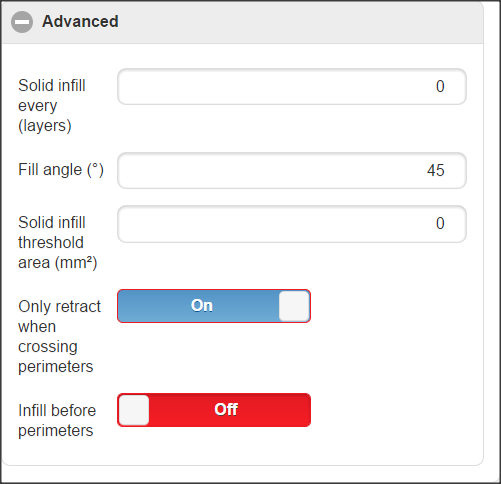

Advanced
|
Solid infill every (layers)
|
Forces a solid infill every X layers, making the object more solid and stronger
|
|
|
|
Fill angle (degrees)
|
Dictates the angle of the fill. Cross hatching will be applied to this. Does not affect bridges.
|
|
|
|
Solid Infill threshold area (mm squared)
|
Forces solid infill for regions having a smaller area than the specified value
|
|
|
|
Only retract when crossing perimeters (on/off)
|
Disables retraction when the travel path does not exceed the upper layer’s perimeter and therefore eliminates most visible ooze
|
|
|
|
Infill before perimeters (on/off)
|
Switches the order of print from infill to perimeters rather than the default other way around |
|

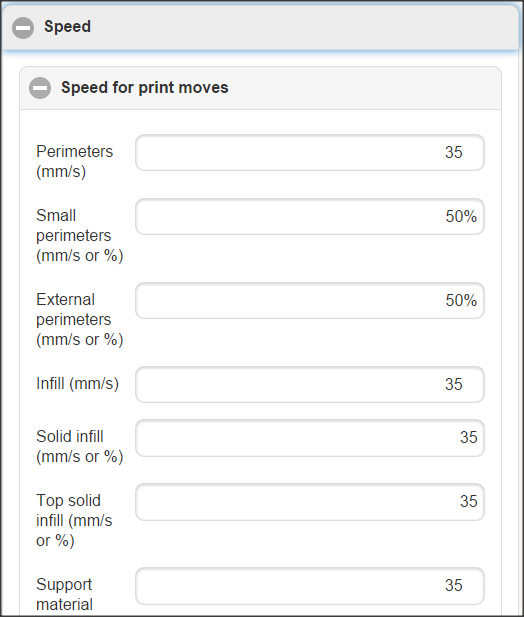

Speed
|
Speed for print moves
|
Perimeters (mm/s)
|
Speed for perimeters
|
|
|
|
Small perimeters (mm/ss or %)
|
Affects the speed of perimeters having radius <= 6.5mm
|
|
|
|
External perimeters (mm/s or %)
|
Affects the speed of visible external perimeters
|
|
|
|
Infill (mm/s)
|
Speed for printing internal fill
|
|
|
|
Solid infill (mm/s or %)
|
Speedfor printing the solid internal fill
|
|
|
|
Top solid infill (mm/s or %)
|
Speed for printing the uppermost solid layer. A slower speed will give a nicer cleaner finish.
|
|
|
|
Support material (mm/s)
|
Speed for printing support material |
|
|
|

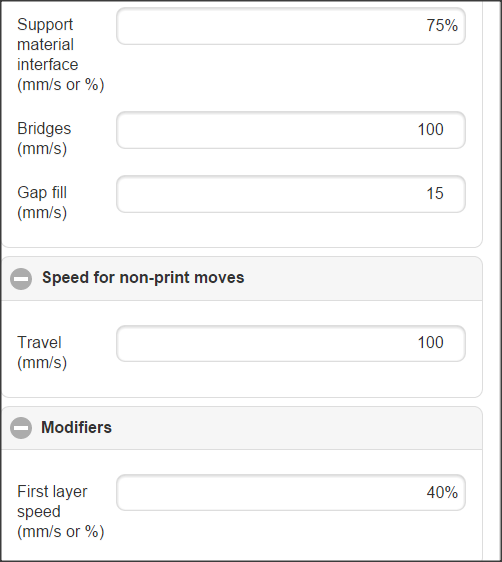

Support material interface (mm/s or %)
|
Speed for printing support material interface layers (layers beween the model and support material)
|
|
|
|
Bridges (mm/s)
|
Speed for printing bridges
|
|
|
|
Gap fill (mm/s)
|
Speed for filling in small gaps using zigzag motions. This should be kept relatively low to avoid shaking and resonance issues.
|
|
|
Speed for non-print moves
|
Travel (mm/s)
|
Sets the speed for travelling between distant extrusion points.
|
|
|
Modifiers
|
First Layer Speed (mm/s or %)
|
Speed applied to all the print moves of the first layer, regardless of their type.
|
|

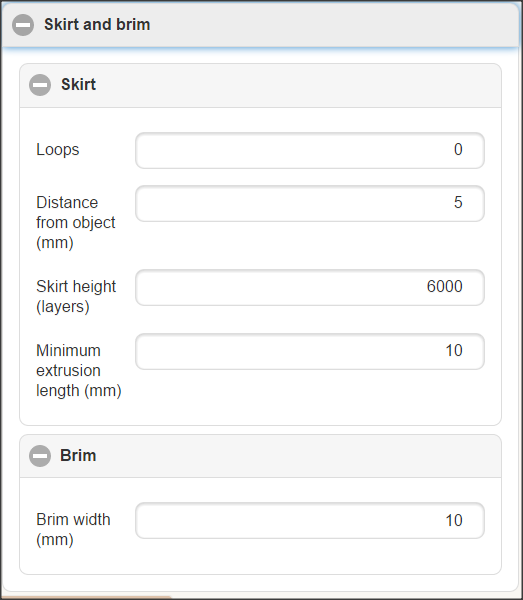

Skirt and Brim
|
Skirt
|
Loops
|
Sets the number of loops (thickness) of the skirt
|
|
|
|
Distance from object (mm)
|
Distance between skirt and object, set this to zero in order to get a brim and get better adhesion
|
|
|
|
Skirt Height (layers)
|
Skirt height expressed in layers
|
|
|
|
Minimum extrusion length (mm)
|
Generate no less than the number of skirt loops required to consume the specified amount of filament on the bottom layer. Applies to both extruders of the Zeepro Zim
|
|
|
Brim
|
Brim Width
|
Horizontal width of the brim that will be printed around each object on the first layer
|
|

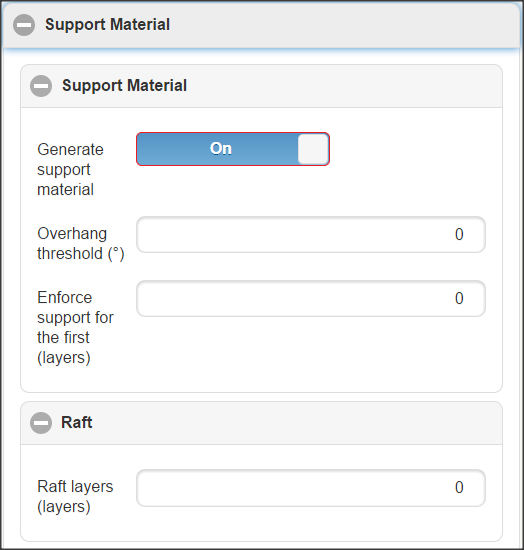

Support Material
|
Support Material
|
Generate Support Material (on/off)
|
Enable support material generation
|
|
|
|
Overhang threshold (degrees)
|
The most horizontal slope that you can print without support material. Set to 0 for automatic detection
|
|
|
|
Enforce support for the first (layers)
|
Forces support for the specified number of layers starting from the bottom, regardless of the overhang threshold and of if support material generation is enabled.
|
|
|
Raft
|
Raft layers (layers)
|
Used to put down layers of support material underneath the object
|
|
|

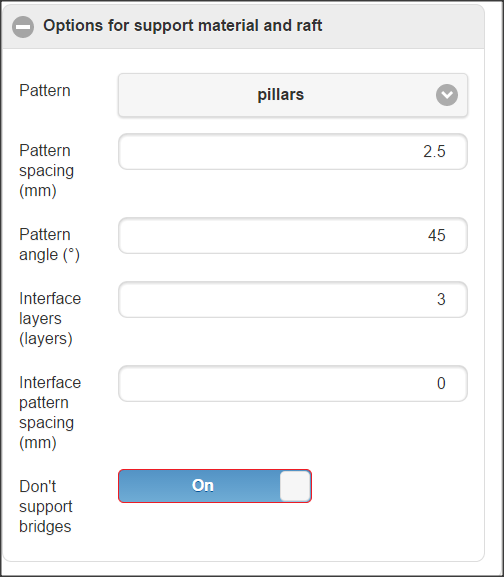

Options for support materials and raft
|
Pattern
|
Pattern of support material
|
|
|
|
Pattern spacing
|
Spacing between support material lines
|
|
|
|
Pattern angle (degrees)
|
Used to rotate support material on a horizontal plane
|
|
|
|
Interface layers
|
Number of interface layers between support material and object
|
|
|
|
Interface pattern spacing (mm)
|
Spacing between interface lines, set to 0 for a solid interface layer
|
|
|
|
Don’t support bridges (on/off)
|
Experimental option that prevents support material being generated under bridges
|
|

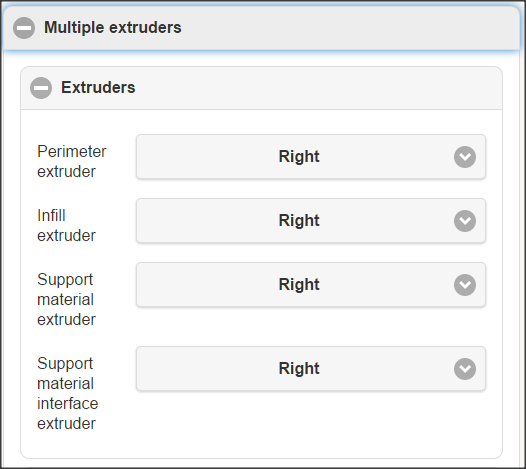

Multiple Extruders
|
Extruders
|
Perimeter extruder (right/left)
|
Extruder to use when printing perimeters
|
|
|
|
Infill extruder (right/left)
|
Extruder to use when printing infills
|
|
|
|
Support material extruder (right/left)
|
Extruder to use when printing support material, brim and raft
|
|
|
|
Support material interface extruder (right/left)
|
Extruder to use when printing support material interface |
|
|

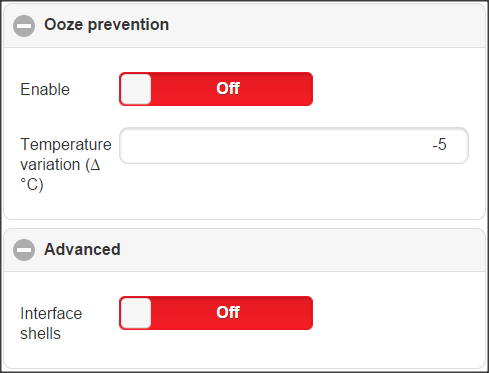

Ooze prevention
|
Enable (on/off)
|
Drops temperature of inactive extruder(s) to prevent oozing. Automatically enables a tall skirt and moves extruders outside of the skirt when changing temperatures
|
|
|
|
Temperature variation (degrees Celsius)
|
Temperature variation to be applied when extruder is not active
|
|
|
Advanced
|
Interface shells (on/off)
|
Force the generation of solid shells between adjacent materials/volumes. Useful for multi-extruder prints with translucent materials or manual soluble support material
|
|
Fan
|
Enable
|
Keep fan always on (on/off)
|
Fan will never shut down and will always run at least at its minimum speed. This is useful for PLA but harmful for ABS
|
|
|
|
Enable auto cooling (on/off)
|
Allows the printer to automatically adjust print and fan speed according to layer print time.
|
|
|

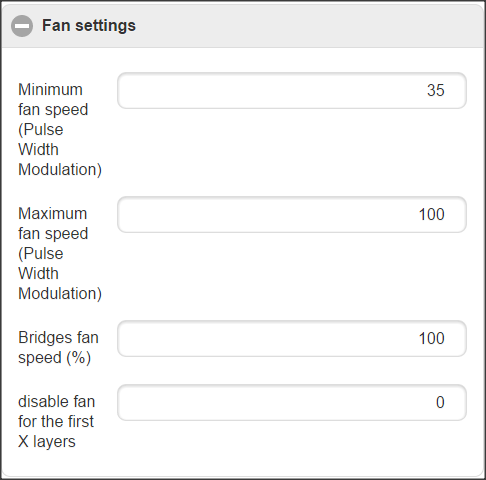

Fan settings
|
Minimum fan speed (pulse width modulation)
|
Sets the minimum PWM (pulse width modulation) your fan needs to work
|
|
|
|
Maximum fan speed (pulse width modulation)
|
Sets the maximum speed
|
|
|
|
Bridges fan speed (%)
|
Fan speed that is enforced during bridges and overhangs
|
|
|
|
Disable fan for the first X layers
|
Disables fan for a certain amount of layers so as to not disrupt adhesion
|
|
|

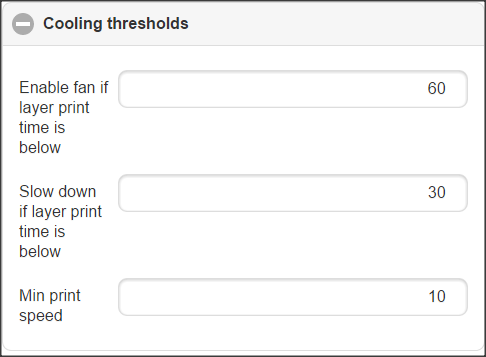

Cooling thresholds
|
Enable fan if layer print time is below
|
If print time is below this number of seconds, the fan will be enabled and its speed will be calculated by interpolating the minimum and maximum speeds
|
|
|
|
Slow down if layer print time is below
|
If print time is estimated below this number of seconds, speed will be scaled down to extend duration to this value
|
|
|
|
Min print speed
|
Sets the absolute minimum speed
|
|
Advanced
|

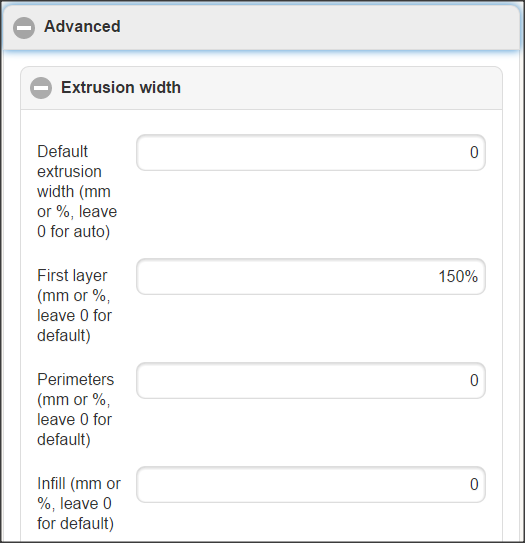

Extrusion width
|
Default extrusion width (mm or %, leave 0 for auto)
|
Sets a manual extrusion width
|
|
|
|
First layers (mm or %, leave 0 for default)
|
Sets a manual extrusion width for the first layer. Can be used to force larger extrusion width for better adhesion
|
|
|
|
Perimeters (mm or %, leave 0 for default)
|
Sets manual extrusion width for perimeters. A thinner extrusion width will allow more accurate surfaces
|
|
|
|
Infill (mm or %, leave 0 for default)
|
Sets a manual extrusion width for infill. A larger extrusion width speeds up infill and makes the parts stronger.
|
|
|
|

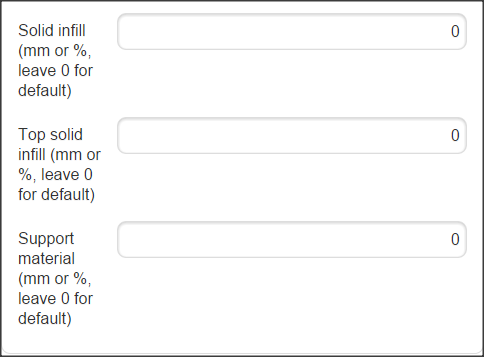

Solid infill (mm or %, leave 0 for default)
|
Sets a manual extrusion width for infill for solid surfaces
|
|
|
|
Top solid infill (mm or %, leave 0 for default)
|
Sets a manual extrusion width for infill for top surfaces. A thinner extrusion width fills narrow regions and helps make parts stronger
|
|
|
|
Support material (mm or %, leave 0 for default)
|
Sets a manual extrusion width for support materials
|
|
|

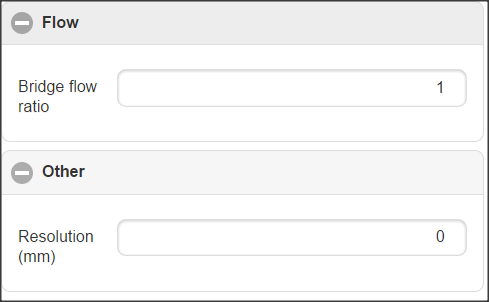

Flow
|
Bridge flow ration
|
Affects the amount of plastic for bridging. Decreasing it slightly pulls extrudates and prevents sagging.
|
|
|
Other
|
Resolution (mm)
|
Minimum detail resolution, used to simplify input file for speeding up the slicing job and reducing memory usage. High-resolution models often carry more details than printers can render. Set to zero in order to disable any simplification and use full resolutionfrom input
|
