Tools needed

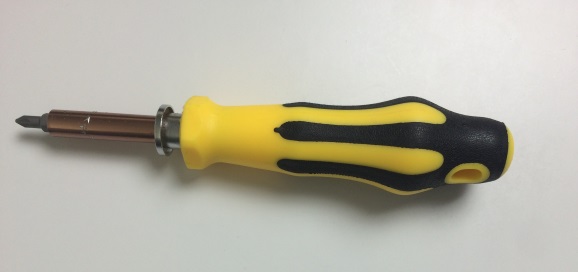

- Phillips screw driver

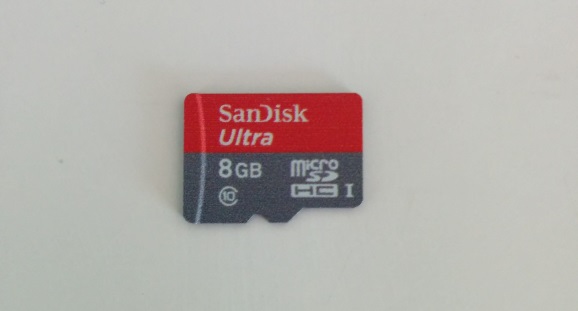

- A micro-SD card (4 Go are usually enough) – Warning: all content will be lost


Important note: ALL DATA ON YOUR MICRO-SD CARD (INCLUDING YOUR MODEL LIBRARY) WILL BE LOST



MAKE SURE THE PRINTER IS SWITCHED OFF

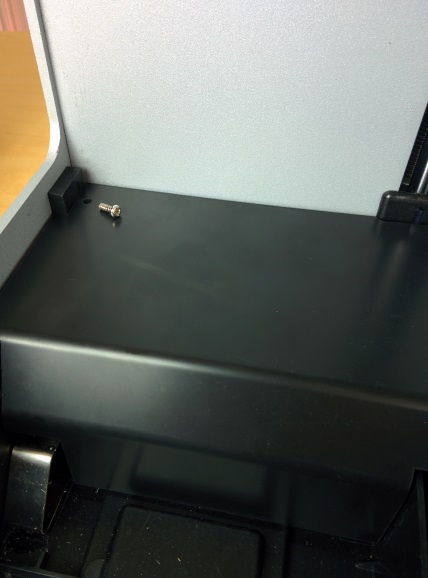

1. Remove the internal cover behind the cartridges by unscrewing the screws:

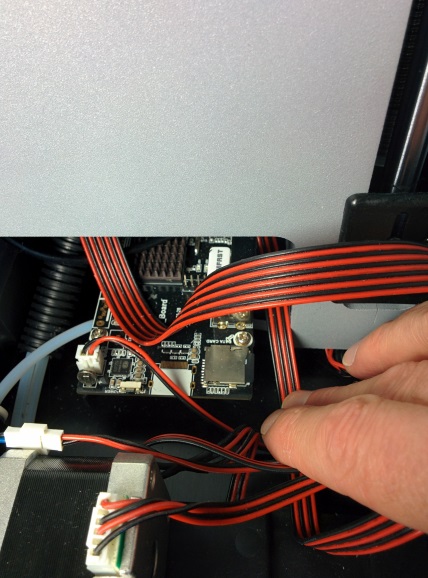

2. Locate the onboard micro-SIM reader situated on the PC board (left side of the printer):

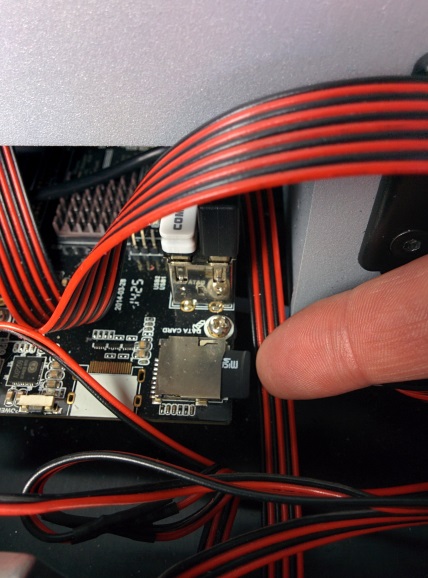

3. Remove the inserted micro-SIM by pushing it gently in its slot

Keep it safe as you’ll need to reinsert it later.


4. Prepare the master micro-SD


- Download the latest version of the "empty" micro-SD image following this link:

http://repo.zeepro.com/image/zeepro-sdimage-empty.zip


Unpack the image file with your favorite archive manager (or download one here: http://www.7-zip.org/download.html)


- Write the micro-SD using one of these software tools:

for Windows Users: http://sourceforge.net/projects/win32diskimager/files/latest/download

for Mac users: http://www.tweaking4all.com/hardware/raspberry-pi/macosx-apple-pi-baker/


(be careful, all data will be erased on the micro-SD card)


5. Insert the master micro-SD card



6. Replace the cover and the fixation screws then switch the printer back on
