Tools needed



- Phillips screw driver



- A micro-SD card (4 Go are enough) – Warning: all content will be lost


Important note: YOUR NETWORK CONFIGURATION WILL BE LOST


You’ll have to re-connect your printer to your network, please be sure to have all needed information at hand.


MAKE SURE THE PRINTER IS SWITCHED OFF


1. Remove the internal cover behind the cartridges by unscrewing the screws:

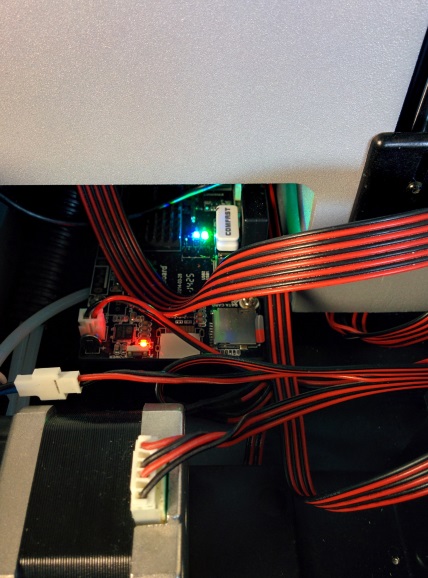

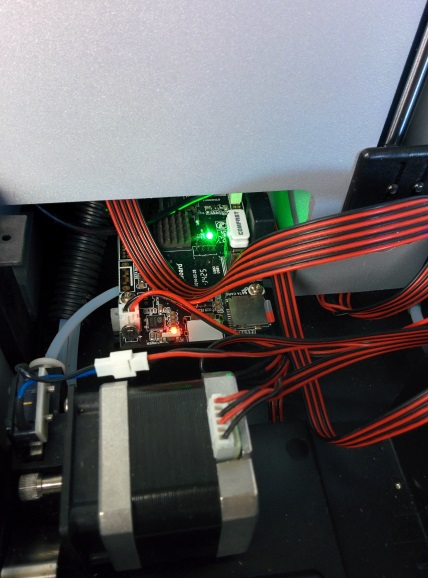

2. Locate the onboard micro-SIM reader situated on the PC board (left side of the printer):



3. Remove the inserted micro-SIM by pushing it gently in its slot

Keep it safe as you’ll need to reinsert it later.


4. Prepare the master micro-SD


- Download the latest version of the firmware following this link:

http://repo.zeepro.com/image/last.zip


Unpack the image file with your favorite archive manager (or download one here: http://www.7-zip.org/download.html)


- Write the micro-SD using one of these software tools:

for Windows Users: http://sourceforge.net/projects/win32diskimager/files/latest/download

for Mac users: http://www.tweaking4all.com/hardware/raspberry-pi/macosx-apple-pi-baker/


(be careful, all data will be erased on the micro-SD card)


5. Insert the master micro-SD card



6. Switch on the printer

- the green led will lit continuously for about 40 seconds


- then the blue led will flash twice every second during 6 and a half minutes

- and eventually, both blue and green led will lit continuously when the operation is complete


7. Final instructions


- SWITCH-OFF THE PRINTER

- remove the master micro-SD

- insert the previously mounted micro-SD

- replace the cover and the fixation screws


Your printer is now updated, please restart its network configuration by following this procedure:

https://zeeproks.freshdesk.com/solution/categories/5000041972/folders/5000065573/articles/5000050243-how-to-connect-zim-to
